VITAE 40 – Advanced Transport & Emergency Ventilator

Description

Advanced ventilation in the palm of your hand”

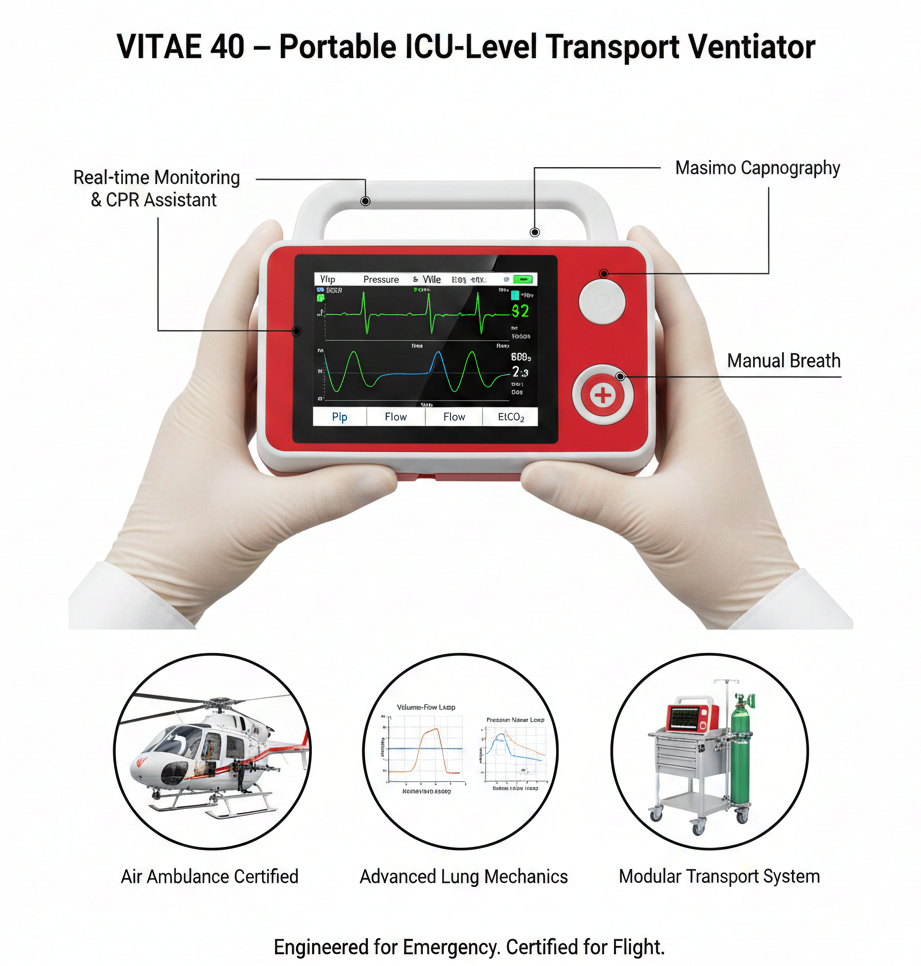

The VITAE 40 is a lightweight, compact, and ergonomic emergency ventilator designed for high-performance ventilation from field CPR to complex ICU-level transport. It is specifically certified for use in air ambulances, helicopters, and aircraft.

Key Performance Features

• Versatile Ventilation: Offers ICU-level ventilation and monitoring for both invasive and non-invasive (NIV) applications.

• Ultra-Portable: Weighs only 1.4 kg (including battery) with compact dimensions of $227\times125\times65$ mm.

• Extended Battery Life: Provides up to 12 hours of operation (5 hours internal + 7 hours with Pluscel accessory).

• Extreme Durability: IP44 rated housing with 30g mechanical resistance to vibration and impact, suitable for helicopters and ambulances.

• Advanced Monitoring: Features a 4.3″ TFT color display showing real-time pressure, flow, and $CO_{2}$ curves, as well as loops and trends.

  CPR & Specialty Assistants

The VITAE 40 includes dedicated assistants to support resuscitation efforts according to European and American Heart Association regulations:

• CPR-PCV: Pressure-controlled ventilation during continuous cardiac massage.

• CPR Semi-Auto/Auto: Manual or automatic trigger of 2 breaths at the end of each massage cycle with an audible/visible metronome.

• CPR Auto-Compressor: Synchronized automatic trigger for 1 breath when using a thoracic compressor.

• High-Flow Oxygen Therapy: Conventional and high-flow therapy up to 80 L/min.

Ventilation Modes

Volume Controlled	Pressure Controlled
VCV, VC-A/C, VC-SIMV	PCV, PC-A/C, PC-SIMV
VC-SIMV-PS (with Pressure Support)	BIPAP, PSV, CPAP
APVG (Adaptive Pressure with Volume Guaranteed)	Non-invasive Ventilation (NIV) with leakage compensation

Technical Specifications

• Tidal Volume: 5 to 3000 mL (50 to 1500 mL in VCV modes).

• Ventilation Frequency: 3 to 80 breaths/min.

• PEEP: 0 to 30 mbar.

• $FiO_{2}$: 40 to 100% $O_{2}$ (in 10% increments).

• Connectivity: Bluetooth connectivity for data communications.

• Operating Range: -20 to +50 °C; up to 4000 m altitude (with automatic thermometer and altimeter corrections)

Basic Configuration & Accessories

• Standard Unit (Ref. 5200800): Includes standard ventilation modes, CPR assistants, high-flow oxygen therapy, adult patient circuit, ambulance power cable, and NiMH battery pack.

• Key Options:

  • Advanced volumetric capnography (Masimo™ mainstream).

  • Advanced ventilation modes (PSV + APVG).

  • Trolley for VITAE 40 (Ref. 4200860).

  • Dedicated transport cases and wall brackets.
